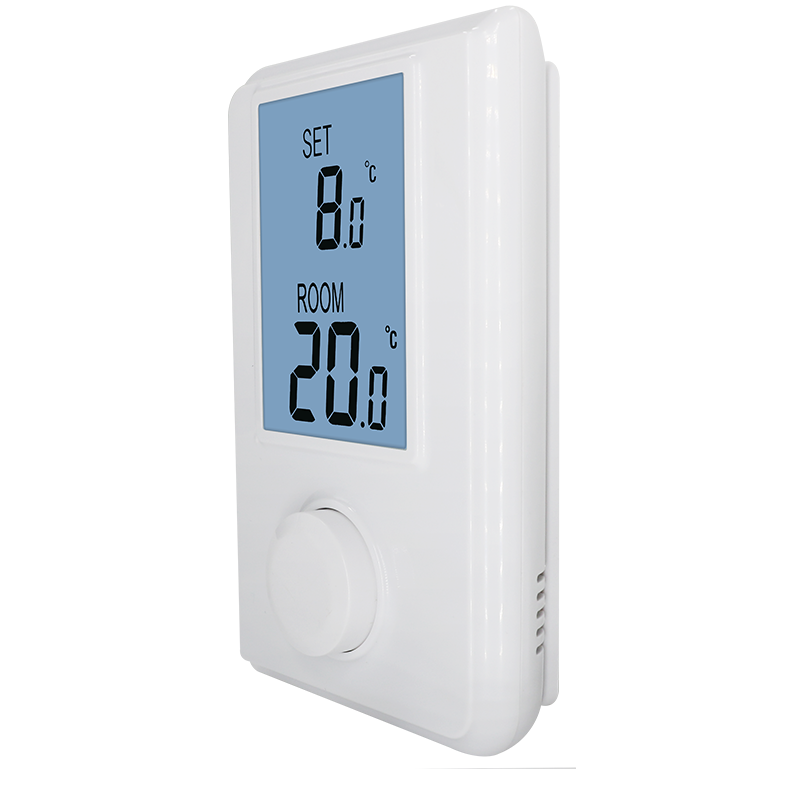

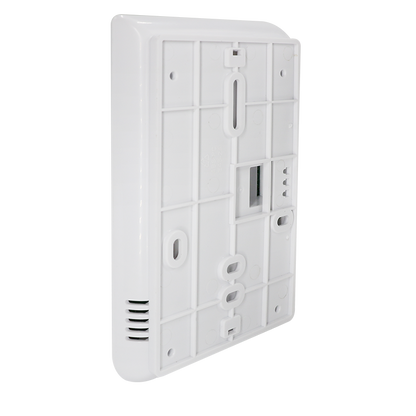

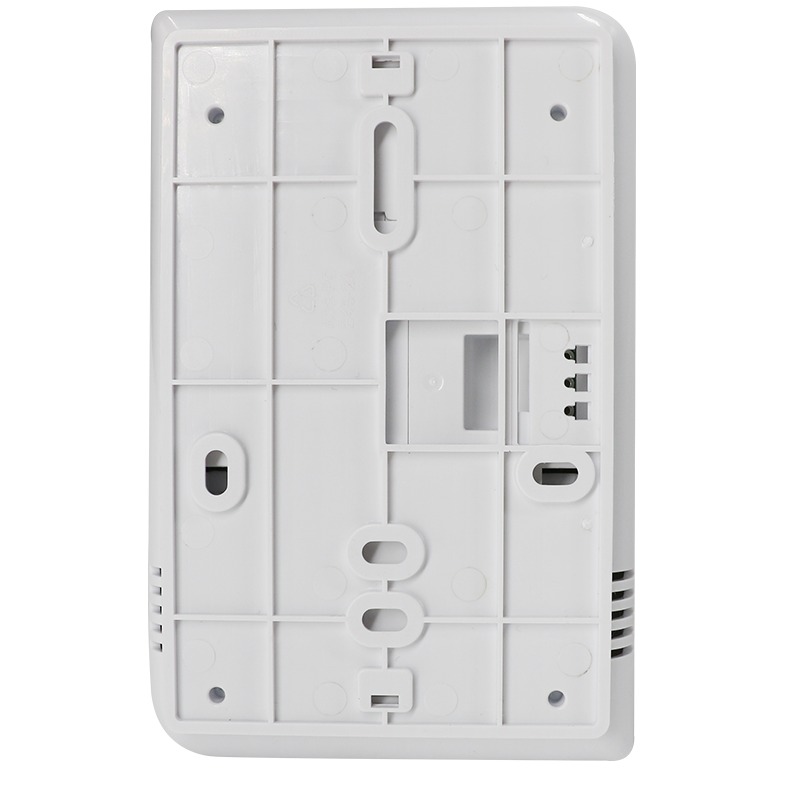

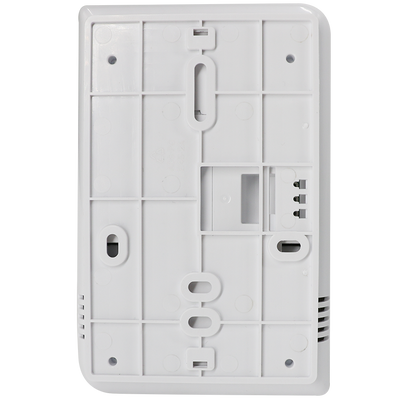

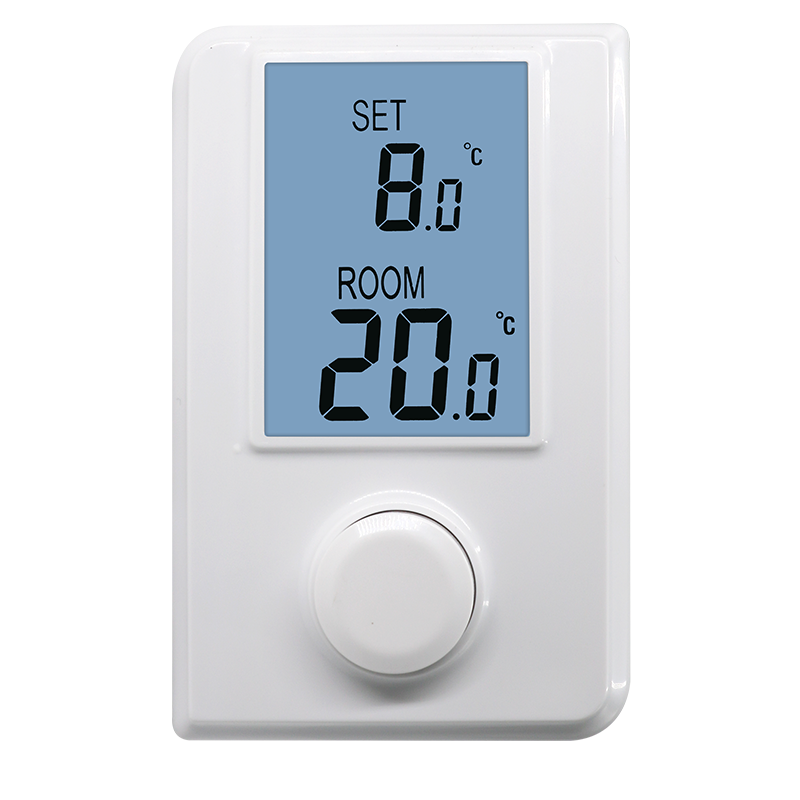

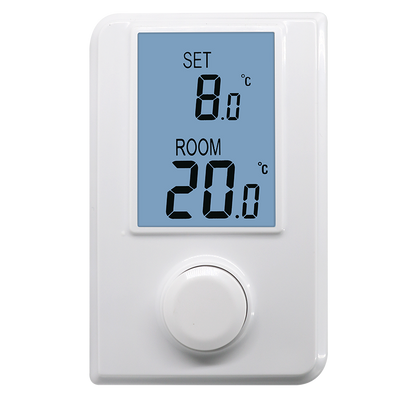

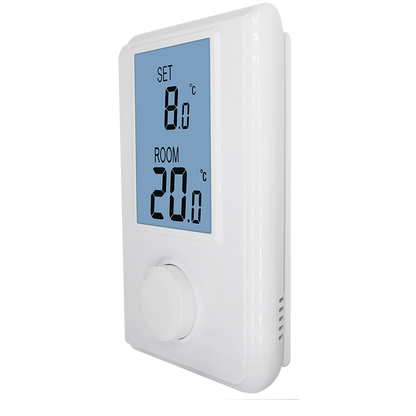

Wall – Mounted Room Digital Heating Thermostat

Name: Wall – Mounted Room Digital Heating Thermostat
Brand: temp
Availability: InStock

Vendor: temp

Short Description:

This surface-mounted thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time

Item No.:HT-19-02NP

Transmitter :2*AAA battery

Receiver switch contacts:NO and NC

Programmability:Non-programmable

Temperature settings:5°C ~ 35°C, 0.5°C increments

Packing :Netural White Box

Unti Weight:0.5KG

Cetificate:CE, ROHS, RED

View Full Details

Technical Data

Specification Name	Specification Value
Name	Acylic Mirror with Negative LCD
WiFi Application	TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud)
Wireless Option	868mhz
WIFI	433/868mhz
Transmitter	2*AAA battery power supply
Receiver	230Vac
Max. Current	10A (Voltage-free output)
Set Temp. Range	5~35 ℃
Ambient Temp.	0~50 ℃
Relative Humidity	85%
Sensor Type	NTC β=3950 R25℃=10KΩ
Battery life	1 Year
Accurancy	±0.5 ℃
Modes	MAN/Holiday/PRG Mode
Programmability	7 days 4 periods
Window Open Detection	Yes
Child Lock	Yes
RF Distance	100 meter in open area
Protection Class	IP20
Thermostat Dimension	135x85x26mm
Receiver Dimension	86x86x26mm
Materils	ABS+PC (Rohs certificated)
Certificate	CE(RED/EMC/LVD), Rohs
OEM	1. Customized logo and package 2. Customzied software ( change to customer’s user interface and control logic 3. Customized hardware ( change the PCB and schematic based on the request)

FAQs

Find quick answers to common questions

Function & Compatibility

1. Are your thermostats compatible with my heating system?

Yes. Our thermostats support most common heating systems, including ON/OFF boilers, underfloor heating, and fan coil units.

2. Do your thermostats support smart home integration?

Yes. Selected models support Wi-Fi, Zigbee, or Bluetooth, and can integrate with platforms like Alexa, Google Home, and Tuya Smart.

3. Can your thermostats control multiple zones or devices?

Yes. We offer multi-zone wiring centers and thermostats suitable for controlling multiple heating zones or devices.

Installation & Usage

1. Is installation difficult for end users?

No. Most thermostats come with clear instructions and can be installed easily by professional HVAC technicians or experienced installers.

2. Can I adjust the temperature remotely?

Yes. Wi-Fi or Zigbee-enabled thermostats allow remote control through mobile apps or voice assistants.

3. Are your thermostats energy-efficient?

Yes. All models are designed to optimize energy usage while maintaining comfort, helping reduce energy costs.

After-Sales & Service

1. What warranty do you provide?

All thermostats come with a 12–24 month warranty, depending on the product type.

2. Can I get technical support if I encounter problems?

Yes. Our professional technical team provides online support for installation, configuration, and troubleshooting.

3.Do you provide replacement parts or repairs?

Yes. We offer replacement parts and repair support within the warranty period to ensure uninterrupted operation.
